Repeatable NDIR CO2 Gas Sensor with High Infrared Response Rate and Silver Technology

Brand Name : ZR Hi-Tech

Model Number : LT-SS-G3AD-CO2

Place of Origin : CHINA

MOQ : 1

Payment Terms : T/T

Delivery Time : 4 weeks

Packaging Details : carton packing

Product name : Gas Sensor

Features : High infrared responsiveness, repeatability and reliability

Material : Aluminum

Operating Temperature : -20~100℃

Application : HVAC, AQMS, Air Cleaner

Color : Silver

Contact Now

1.8*1.8MM LT-SS series high precision gas sensor

Quick Detail:

· Aluminum housing

· High infrared response rate

· -20℃~+100℃ operating temperature

· High repeatability

· high reliability

· NDIR CO2

· TO-39 Twin window metal shell package

· CE, RoHS, REACH compliant

· 1 Year Warranty

Description:

LT-SS-G3AD-CO2 is a ZR part number for Gas Sensor.Viewing Angle 108°;High sensitivity;Good stability, working temperature: -20℃~+100℃;

Specifications:

Electrical / Optical Characteristics (Ta=25℃±3℃)

Items

Specification

 Conditions
Part Number LT-SS-G3AD-CO2
Chip Size 1.8*1.8mm
Sensitive Area 1.4*1.4mm
Field 108°
Resistance

72±8 kΩ
Noise Figure

34±2 nV/Hz1/2
Noise Equivalent Power

0.43 nW/Hz1/2
Response Ratio

78V/W
Time Constant 25ms
Detectivity

1.6E08 cm*Hz1/2/W
Thermistor Value

100±1% kΩ
Thermistor Beta Value

3950±1% K
Operating Temperature -20℃~+100℃
Storage Temperature -40℃~+125℃
Dimension 16×9.85 series(4pad)
Note: for custom specs, please contact us directly.

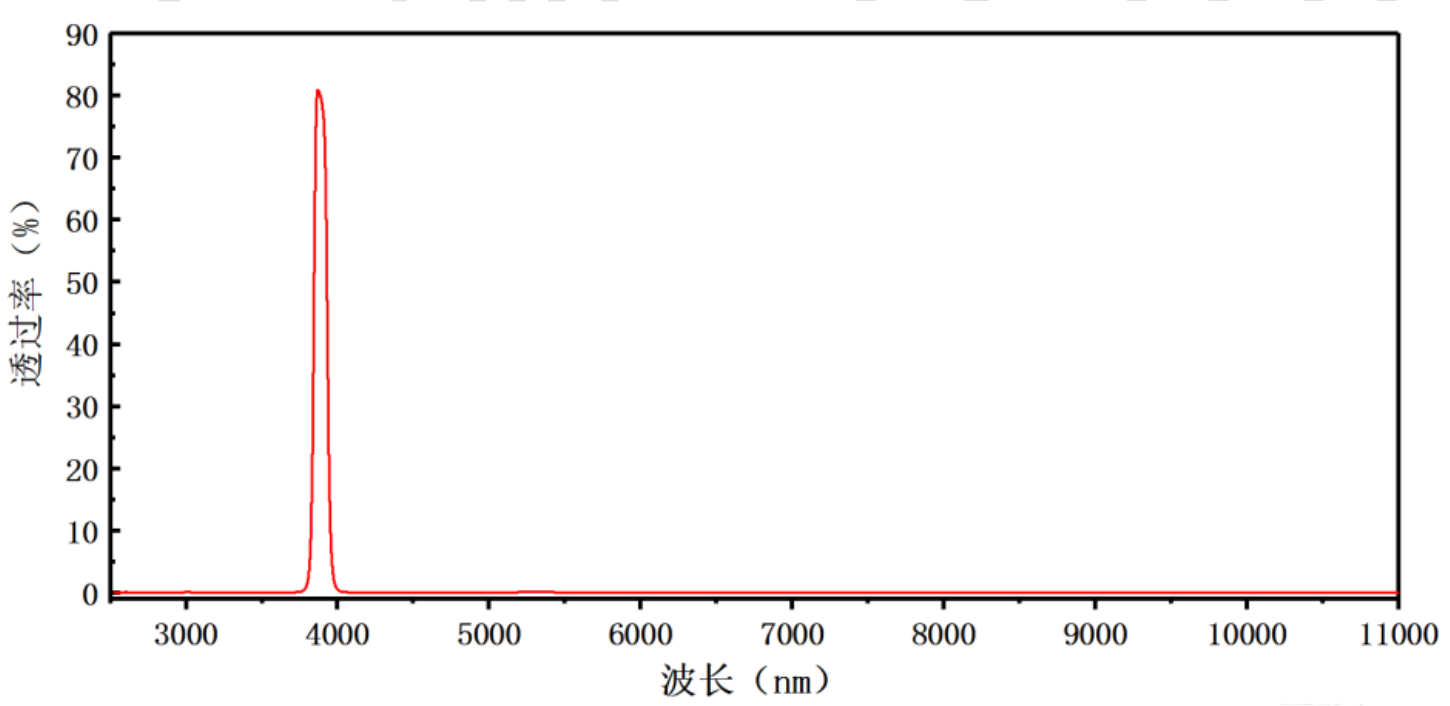

Filter:

Repeatable NDIR CO2 Gas Sensor with High Infrared Response Rate and Silver Technology

Repeatable NDIR CO2 Gas Sensor with High Infrared Response Rate and Silver Technology

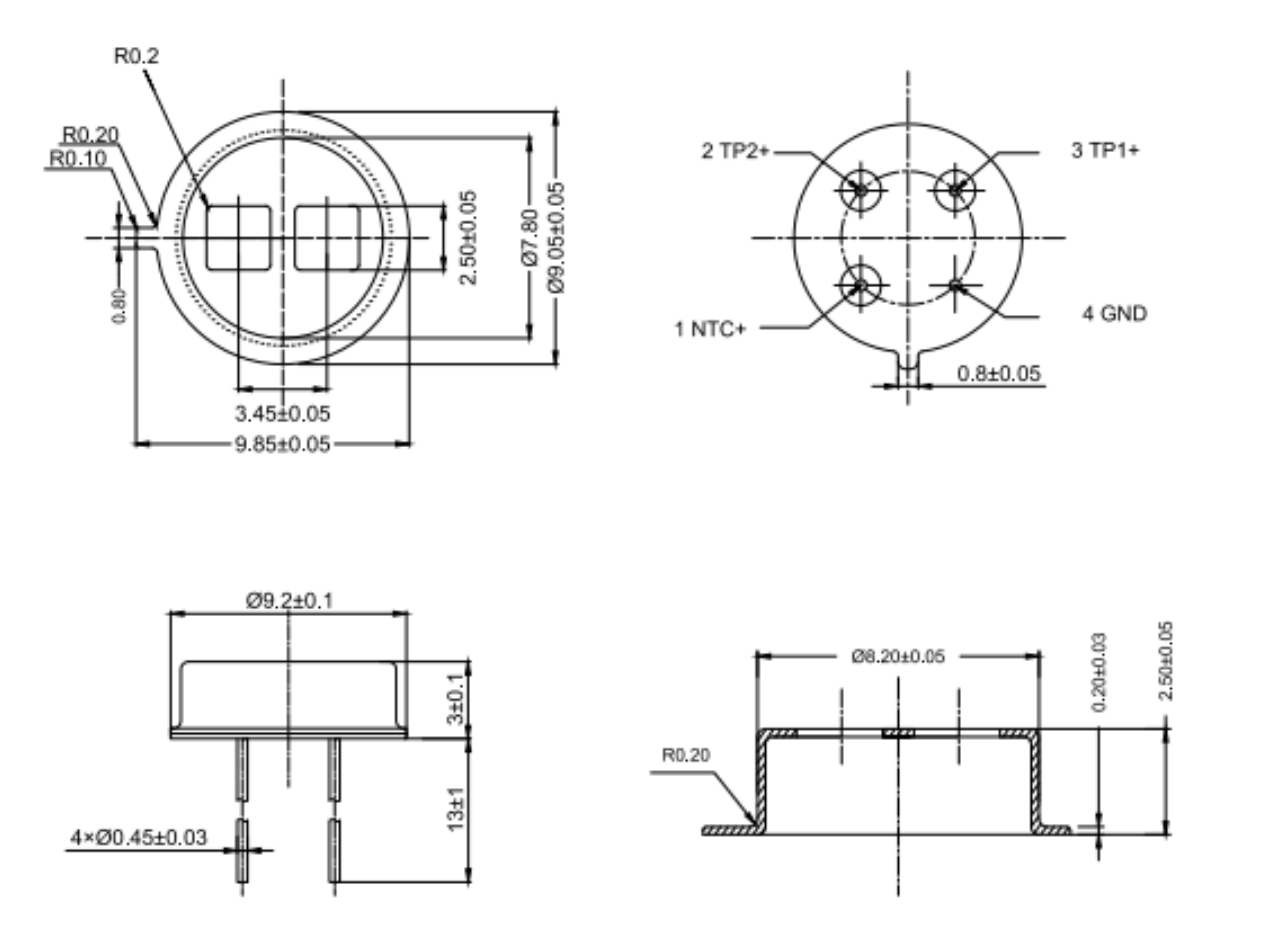

Outline Drawing (Unit: mm):

Repeatable NDIR CO2 Gas Sensor with High Infrared Response Rate and Silver Technology
